BWA40 Series - DIP DC/DC Converter

  • Outpower:40 Watt
  • Wide 2 : 1 Input Voltage Range (9~18V,18~36V,36~75V)
  • Remote On/Off
  • Input / Output Isolation 1.5K Vdc
  • High Efficiency up to 90%
  • Output Short Circuit Protection: Hiccup & Auto Recovery
  • Over Voltage Protection: Clamp Mode
  • Over Temperature Protection
  • Shielded Metal Case with Insulated Baseplate
  • Lead Free Design, RoHS Compliant
  • Adjustable Output Voltage
  • Optional Heat-sink
  • Customer Design Available

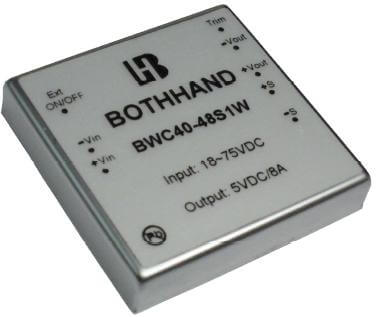

BWC40W Series DIP DC/DC Converter

  • Outpower:40 Watt
  • Wide 4 : 1 Input Voltage Range (9~36V,18~75V)
  • Remote On/Off
  • Input / Output Isolation 1.5K Vdc
  • High Efficiency up to 88%
  • Output Short Circuit Protection: Hiccup & Auto Recovery
  • Over Voltage Protection: Clamp Mode
  • Over Temperature Protection
  • Shielded Metal Case with Insulated Baseplate
  • Lead Free Design, RoHS Compliant
  • Adjustable Output Voltage
  • Optional Heat-sink
  • Customer Design Available

BXC60 Series DIP DC/DC Converter



  • Outpower:60 Watt
  • Wide 4 : 1 Input Voltage Range(9~36V)
  • Remote On/Off
  • High Efficiency up to 88%
  • Output Short Circuit Protection: Hiccup, Continuous & Auto Recovery
  • Over Temperature Protection
  • Adjustable Output Voltage: ±10%
  • Optional Heat-sink

BYB100 Series DIP DC/DC Converter



  • Outpower: 100 Watt
  • Wide 2 : 1 Input Voltage Range (36~75V)
  • Input / Output Isolation Voltage: 1.5kVDC
  • Remote On/Off
  • Output Short Circuit Protection: Hiccup, Continuous & Auto Recovery
  • Over Temperature Protection
  • Over Voltage Protection: Clamp Mode
  • Lead Free Design, RoHS Compliant
  • Customer Design Available
  • Meet Safety Standard : IEC / EN60950-1

Isolated DC-DC Converters CEA2-05S1H3





  • 8 pin SIP package
  • Wide 2 : 1 Input Voltage Range 4.5~9V,9~18V,18~36V,36~75V)
  • Input / Output Isolation Voltage: 3kVDC
  • Output Short Circuit Protection: Continuous & Auto Recovery
  •  Remote On/Off Control
  •  Lead Free Design, RoHS Compliant
  • Operating temperature: -40°C to +85°C
  •  Meer Safety Standard / Approval: IEC / EN60950-1

Isolated DC-DC Converters CEA2-12S2H3



• 8 pin SIP package
• Wide 2 : 1 Input Voltage Range (4.5~9V,9~18V,18~36V,36~75V)
• Input / Output Isolation Voltage: 3kVDC
• Output Short Circuit Protection: Continuous & Auto Recovery
• Remote On/Off Control
• Lead Free Design, RoHS Compliant
• Operating temperature: -40°C to +85°C
• Meer Safety Standard / Approval: IEC / EN60950-1

Isolated DC-DC Converters CEA2-24S0H3

• 8 pin SIP package
• Wide 2 : 1 Input Voltage Range (4.5~9V,9~18V,18~36V,36~75V)
• Input / Output Isolation Voltage: 3kVDC
• Output Short Circuit Protection: Continuous & Auto Recovery
• Remote On/Off Control
• Lead Free Design, RoHS Compliant
• Operating temperature: -40°C to +85°C
• Meer Safety Standard / Approval: IEC / EN60950-1
